Fire Suppression Agents & Cannisters

Troman’s fire-suppression agent, Purple K, outperforms traditional water-based systems in efficiency, providing faster and more effective fire suppression while minimizing collateral damage. Troman’s system offers reduced installation labor compared to incumbent solutions, streamlining the process and cutting costs. Its compact design leads to significant mass and space savings, optimizing cargo volume without compromising on performance. Troman’s versatile installation options further enhance its adaptability to different environments. With these benefits, customers experience high satisfaction—all at a competitive price point, making it a smart and cost-effective choice for your vehicle’s fire-suppression system.

Purple K: Dry Chemical Extinguishing Agent

Troman strives to recognize the environmental impacts of extinguishing agents. Our solution is Purple K, a fast, efficient, environmentally friendly fire suppression agent.

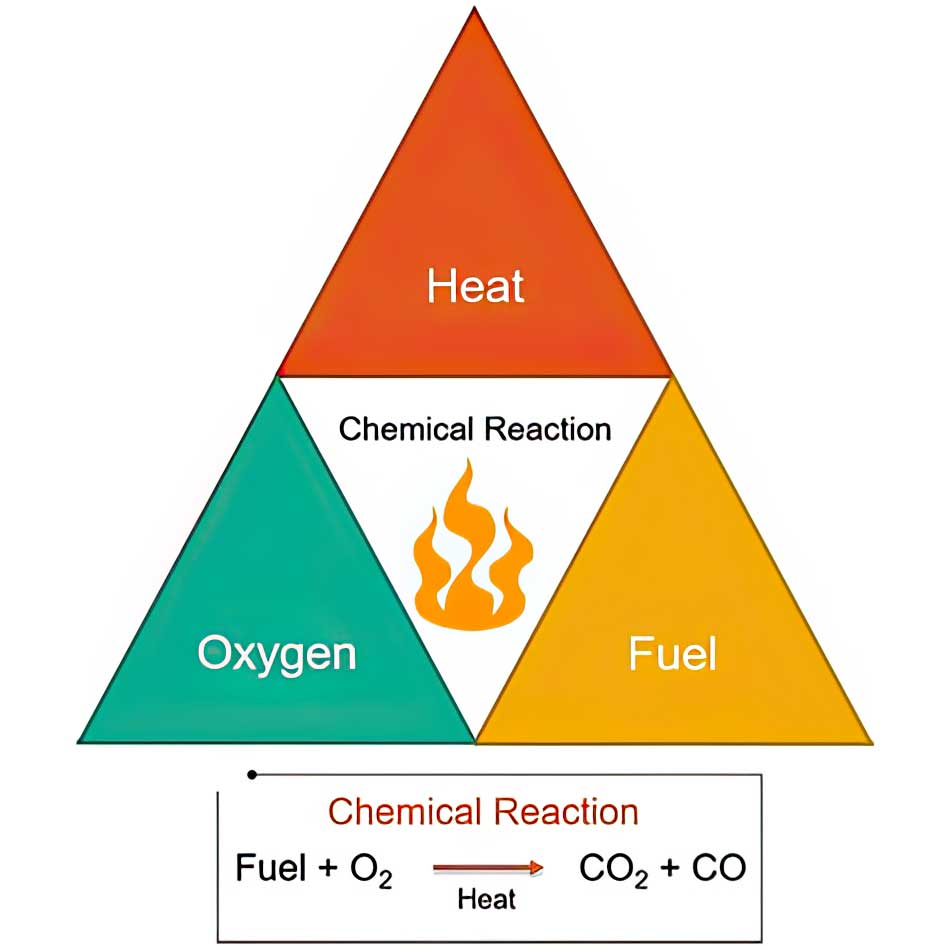

It is a potassium bicarbonate-based dry chemical agent that extinguishes by changing flame chemistry and cooling. Purple K suppresses Class B (petroleum, oil, lubricant) and Class C (electrical) fires by interrupting a fire’s chemical reaction and cooling the flame/hot surfaces (endothermic reactions and surface cooling).

Water-based extinguishing agents are undesirable for a Class B fire because they can spread the flames, and they are undesirable for a Class C fire due to potential shock hazards. That’s why the military uses Purple K—for its superior fire suppression capabilities in all situations.

Advantages of Purple K Over ABC

Purple K

  • This powder is known for its superior effectiveness on liquid and gas fires, outperforming many other agents due to its chemical makeup. It quickly smothers flames and creates a barrier to prevent re-ignition, which is why it’s often selected for areas with flammable liquids and gases.

  • Superior effectiveness on liquid fires; Quick suppression for high-risk areas; Minimal residue compared to ABC powder

ABC

  • ABC powder tends to leave a significant amount of residue, which can be damaging to electronics and surfaces if not cleaned promptly. For general settings, this isn’t typically an issue, but for environments with delicate equipment, it’s worth considering.

  • While ABC powder works well on liquid and electrical fires, it may be slightly less effective on flammable liquids than Purple-K.

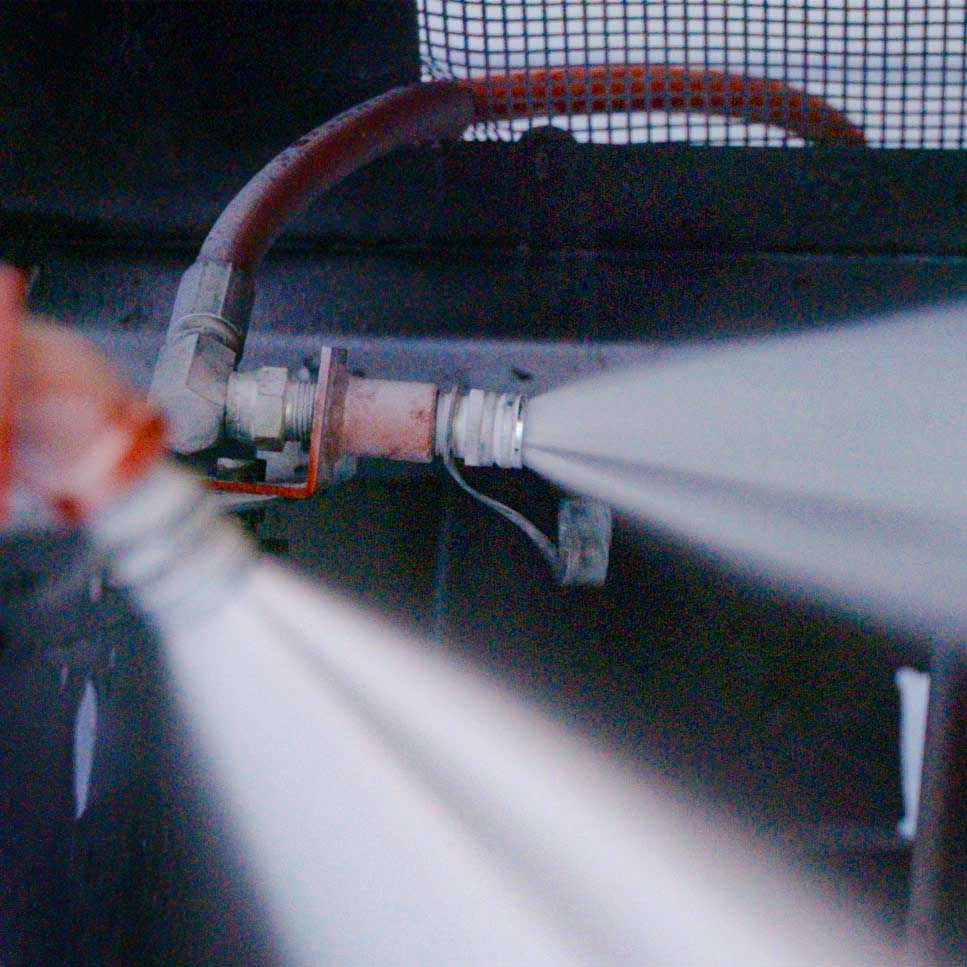

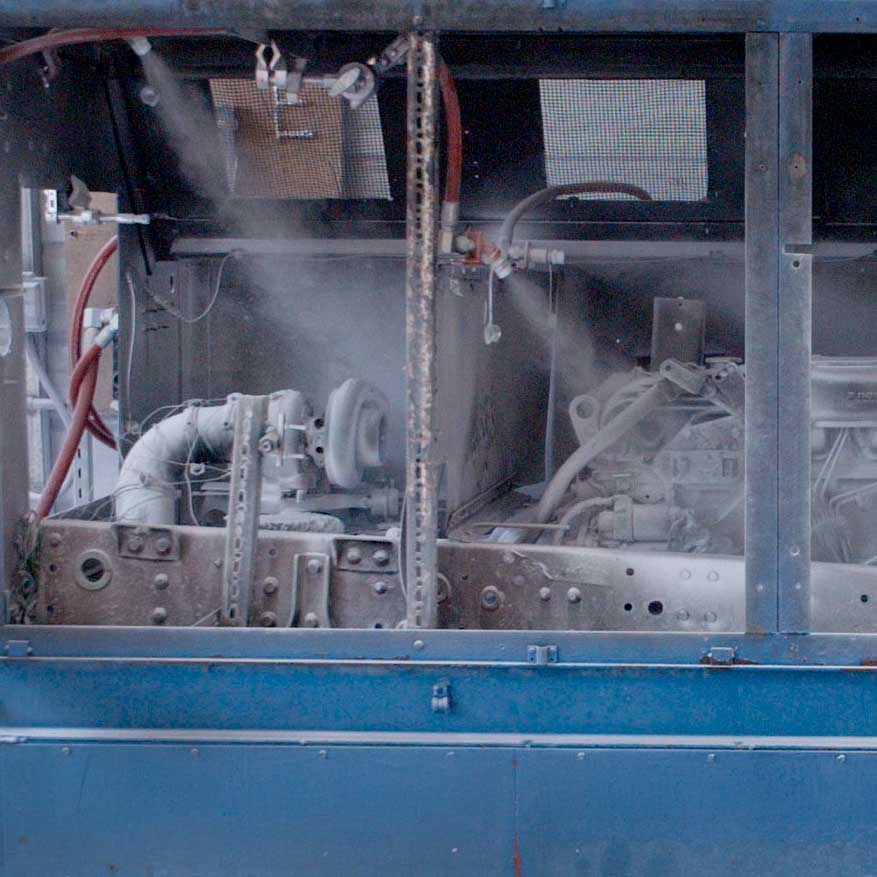

Troman Bus Fire Suppression System Demonstration

Troman Small Bus Extinguisher

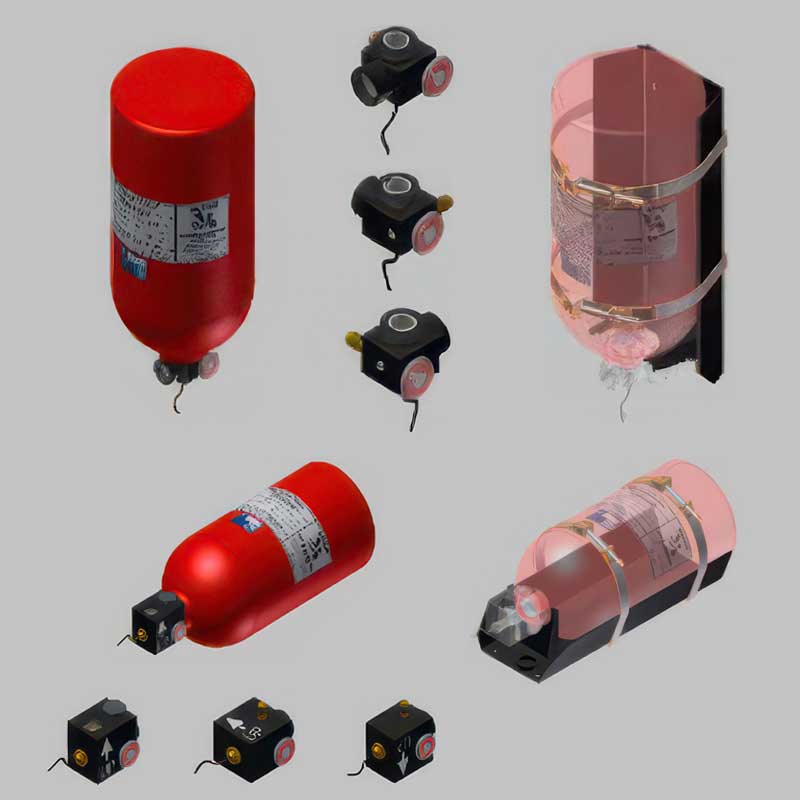

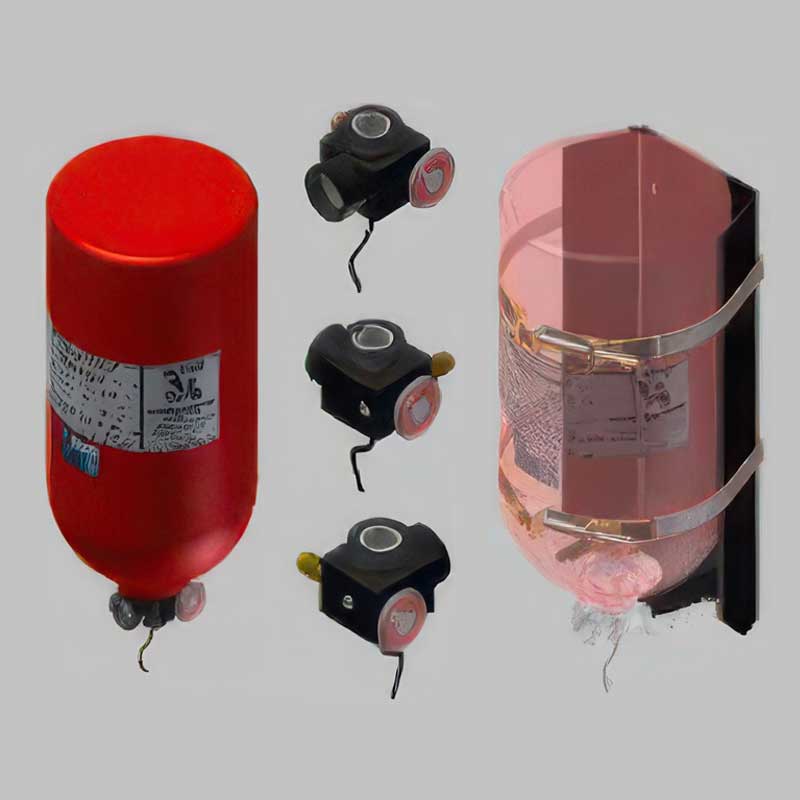

The Troman small bus extinguisher is 8L volume and holds 7 kg Purple K dry Chemical and is pressurised to 24 bar. This extinguisher is ideal for protecting vehicle engine compartments or other fire risk zones with a volume of up to 3m3. The Extinguisher is provided in vertical orientation and is fitted with a standard or electronic pressure gauge. This provides an alarm signal to the driver if low pressure occurs. Pressure gauges can be installed in 3 orientations to allow good visibility irrespective of installation orientation. The extinguisher is provided with a bracket. This can be wall or floor-mounted.

Key Features

  • 7kg Purple K Extinguishing Agent at 24 bar

  • Provides fire Suppression in compartments up to 3 m3

  • DOT, Transport Canada and TPED approvals

  • Available with standard or electronic gauge –3 orientations

  • Available with wall or floor mounted bracket

  • Service interval –6 years

Specifications

  • Voltage Rating: 9 –32 V

  • Current Draw: 90 mA Max

  • Temperature Range: -40°C to +93°C (-40°F to +200°F)

UNECE107 Extinguisher

The UNECE107 extinguisher is 9.8L volume, holds 8.5 kg Purple K dry Chemical, and is pressurised to 24 bar. This extinguisher is designed to protect vehicle engine compartments or other fire risk zones with UNECE107 volumes of between 2m3 and 6m3. The Extinguisher is provided in vertical or horizontal orientations and is fitted with a standard or electronic pressure gauge. This provides an alarm signal to the driver if low pressure occurs. Pressure gauges can be installed in 3 orientations to allow good visibility irrespective of installation orientation. The extinguisher is provided with a bracket. This can be wall or floor-mounted.

Key Features

  • 8.5 kg Purple K Extinguishing Agent at 24 bar

  • Provides fire Suppression in UNECE 107 compartments

  • DOT, Transport Canada and TPED approvals

  • Available with standard or electronic gauge – 3 orientations

  • Available with wall or floor mounted bracket

  • Service interval – 7.5 years

Specifications

  • Voltage range: 9–32V

  • Current draw: 50 mA Nominal at 24V

  • Temperature range: -40°C to 85°C / -40°F to 185°F

Troman Large Bus Extinguisher

The large extinguisher is 13.1L volume, holds 11.4 kg (25lb) Purple K dry Chemical and is pressurised to 24 bar (360 psig). This extinguisher is designed to protect vehicle engine compartments or other fire risk zones with volumes of between 2m3 and 10.1m3. The Extinguisher is provided in vertical or horizontal orientations and is fitted with a standard or electronic pressure gauge. This provides an alarm signal to the driver if low pressure occurs. Pressure gauges can be installed in 3 orientations to allow good visibility irrespective of installation orientation. The extinguisher is provided with a bracket. This can be wall or floor-mounted.

Key Features

  • 11.4 kg (25 lb) Purple K Extinguishing Agent at 24 bar (360 psig)

  • Provides fire Suppression in compartments up to 10.1 m3.

  • DOT, Transport Canada, and TPED approvals

  • Available with standard or electronic gauge – 3 orientations

  • Available with a wall or floor-mounted bracket

  • Service interval – 6 years

Specifications

  • Voltage Rating: 9 – 32 V

  • Current Draw: 90 mA Max

  • Temperature Range: -40°C to +93°C (-40°F to +200°F)
