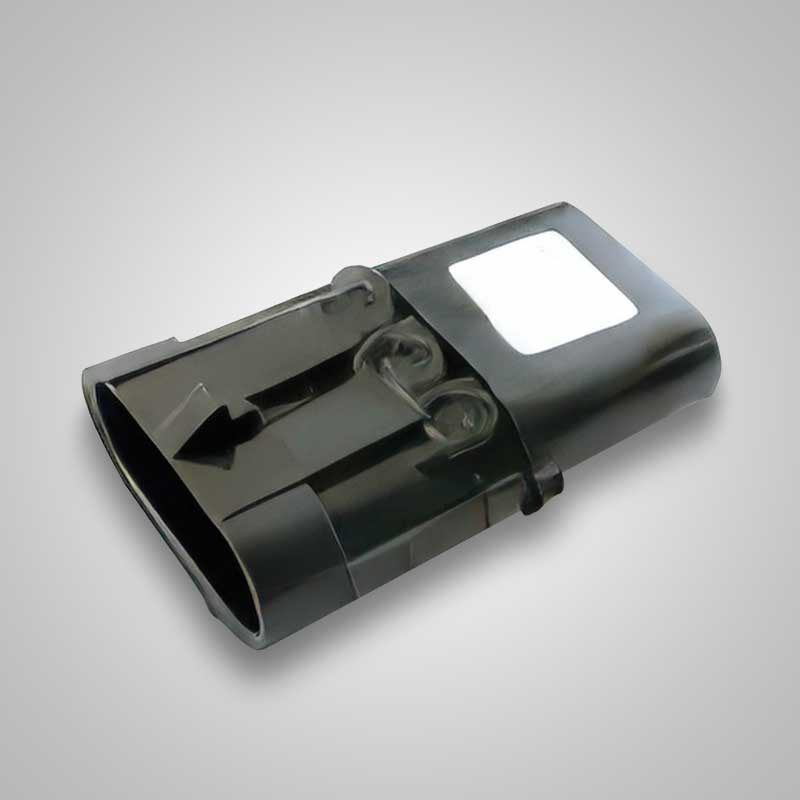

End of Line (EOL)

The Troman End-of-Line (EOL) allows channel monitoring for each detection circuit, and if removed, provides an immediate fault.

Troman’s EOL Ensures Continuous Fault Detection

The device can be used on all Troman Commercial Ground Vehicle KT series controllers and detectors (e.g., Linear, Optical, and Gas) with 3 Way Weather-Pack connectors. The device is fitted at the end of the last detector for each channel and provides a resistance that allows continuous channel monitoring. When disconnected, an open circuit is created, which provides a fault condition. The EOL can be used to assist with fault diagnostics by determining which detector or channel is in fault.

Features

  • Works with all Kidde KT series controllers

  • Compatible with all Kidde detectors with 3 Way Weather-Pack connections

  • Connects to the last Kidde Detector on each channel

  • Enables channel monitoring and provides system ok when fitted

  • Provides immediate fault if removed and aids fast fault diagnostics

Specifications

  • Voltage Range: 9 – 48V

  • Current Draw: Nil @ 24V

  • Temperature Range: -40 to +125°C (-40 to +257°F)

  • Waterproof device. Can be mounted internally, externally, and inside hazard zone.
