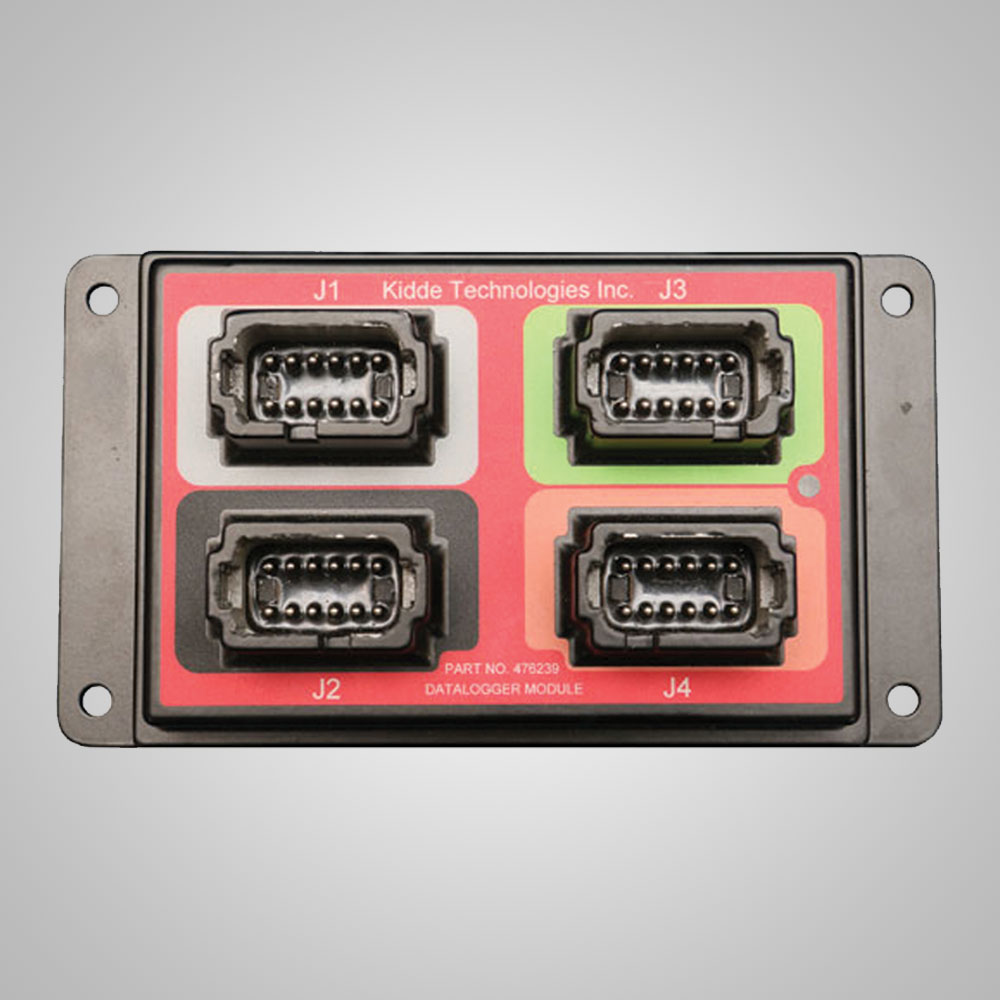

KT1200: 12-Channel Datalogger

The KT1200 is the most advanced multifunctional data logging controller. These controllers should be used when vehicles require multiple detectors within multiple high-risk zones. The Troman/Kidde LCD screen provides drivers with detailed information during trouble or alarm conditions. The controllers work with all Troman/Kidde detectors and allow the driver to carry out several actions following an alarm.

Continuous Monitoring Supports Emergency Protocols

These include delaying system activation, silencing the external audible alarm, and resetting the system after an event. The controller provides continuous monitoring and output signals which can be used to assist in activation of vehicle emergency protocols, including turning off non-essential systems ( e.g., HVAC, engine fans), de-rate or rum off the engine, turn on hazard lights, evacuation of passengers, and operation of the Troman/Kidde extinguishing system.

Features

  • Up to 12 channels

  • Datalogging

  • Highly configurable setup using software

  • Continuously monitors detection and suppression system

  • Works with all Troman/Kidde detectors

  • Spot and linear thermal, optical, gas, smoke, and pressure monitoring

  • Controller Area Network (CAN) Bus J1939 capable

  • Operates two Troman/Kidde extinguishers up to 60 seconds in 15 second increments

Specifications

  • Voltage range: 9–32V

  • Quiescent current: 50 mA Nominal at 24V

  • Temperature range: -40°C to 85°C / -40°F to 185°F

Stoneridge logo

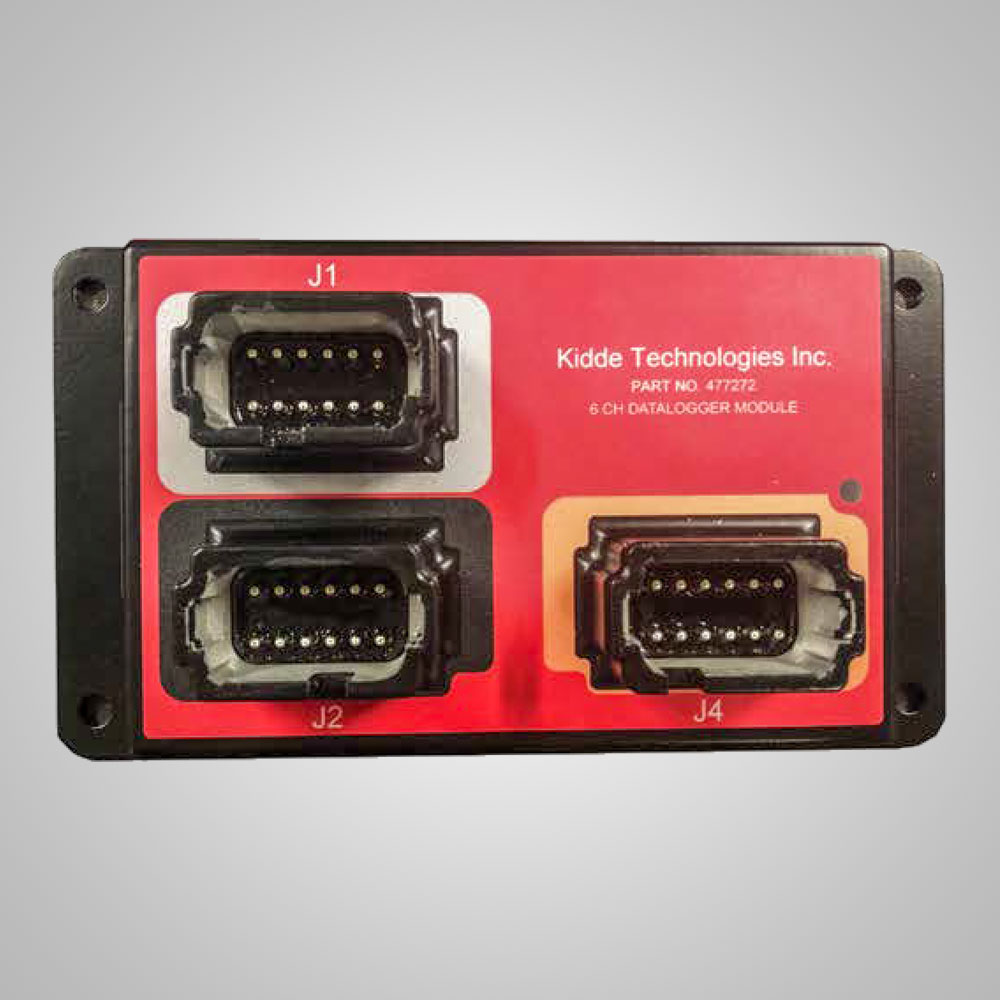

KT600: 6-Channel Datalogger

The KT600 is a highly configurable 6-channel multifunctional datalogging controller. This controller should be used when vehicles require multiple detectors within one or more high-risk zones. The controller works with all Troman/Kidde detectors and allows the driver to carry out several actions following an alarm.

Continuous Monitoring Supports Emergency Protocols

The controller provides continuous monitoring and output signals which can be used to assist in activation of vehicle emergency protocols, including turning off non-essential systems (e.g., HVAC, engine fans), de-rate or turn off the engine, turn on hazard lights, evacuating passengers, and operation of the Troman/Kidde extinguishing system.

Features

  • Up to 6 channels

  • Datalogging

  • Highly configurable setup using software

  • Continuously monitors detection and suppression system

  • Works with all Troman/Kidde detectors

  • Controller Area Network (CAN) Bus J1939 capable

Specifications

  • Voltage range: 9–32V

  • Current draw: 50 mA Nominal at 24V

  • Temperature range: -40°C to 85°C / -40°F to 185°F
